Solutions · CKD & SKD assembly
CKD and SKD Electric Golf Carts for Local Assembly — 2, 4 and 6 Seats
Assemble electric golf carts in your own market. We supply 2-seat, 4-seat (2+2) and 6-seat (4+2) electric carts as CKD or SKD kits through our partner factories — one 40ft HQ container per order, lead-acid or lithium batteries, your logo and colors, and support to set up your assembly line.
CKD and SKD supply at a glance
Both kit types ship in one 40ft HQ container and come with the documents your team needs to assemble the carts.
| Cart types | Electric golf carts: 2-seat, 4-seat (2+2) and 6-seat (4+2) |
|---|---|
| Kit types | CKD (completely knocked down) or SKD (semi-knocked down) |
| Batteries | Lead-acid or lithium |
| Order size | One 40ft HQ container per order |
| Carts per 40ft HQ | CKD: about 28 four-seat or 20 six-seat SKD: about 24 four-seat or 18 six-seat |
| Lead time | 25–30 days |
| Warranty | 1 year |
| Your brand | Your logo in up to 10 places at no extra cost; 9 body colors; 4 rim styles |
| Assembly support | Assembly manual and video with every order; handcart assembly line at no extra cost; technicians on site for a first SKD order |
| Lithium battery documents | Battery MSDS, UN38.3 test report and sea-freight transport certification |
| Payment | T/T bank transfer |
Example models. Specifications for the lifted 4-seat and 6-seat carts are below; ask for the 2-seat specifications with your quote.
Who it suits
- Dealers and distributors who assemble carts locally
- Buyers who want to fill a 40ft container with one order
- Importers launching carts under their own brand
- Operators who also need spare parts for the carts they run
Already running other brands? Add their spare parts to the same enquiry — we quote parts for Club Car, EZGO, Yamaha, Cushman and Chinese brands.
CKD or SKD: which kit suits you?
The difference is how much is already fitted to the chassis when the container arrives. Fewer parts to fit means a faster start; a fully knocked-down kit fits more carts in each container.
CKD — completely knocked down
The welded frame ships bare, and every system is packed separately by category.
284-seat carts per 40ft HQ
206-seat carts per 40ft HQ
- Most carts per container
- Suits teams that already assemble vehicles
- Suspension, brakes, electrical, body, seats, roof and wheels in separate packages
Recommended for a first order
SKD — semi-knocked down
The chassis arrives with the suspension, brakes and some main electrical parts already fitted.
244-seat carts per 40ft HQ
186-seat carts per 40ft HQ
- Fewer assembly steps, so your team gets started faster
- Body panels, roof, seats, wheels and tires packed by category
- On a first SKD order of 25–30 carts, our technicians come to help
How the kits are packed
- The chassis frame is wrapped in bubble film and fixed into a steel frame
- Parts are packed in bubble bags and cartons, one set per category
- Every package lists the part names and quantities inside
- Lithium batteries travel in plywood cases

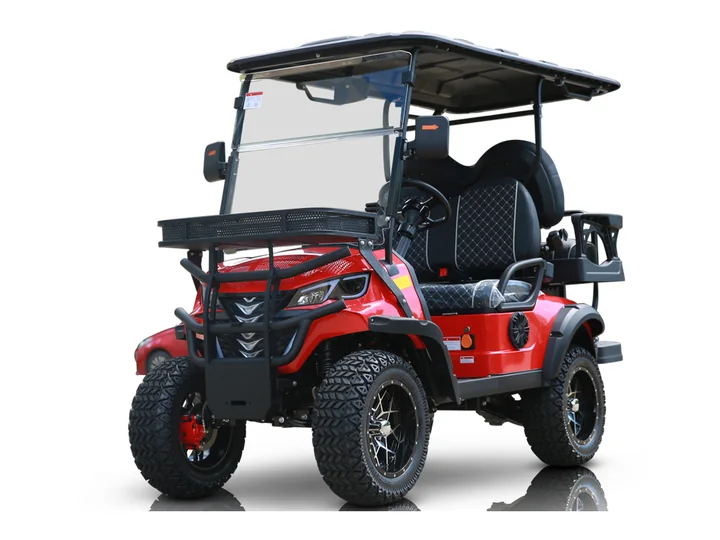

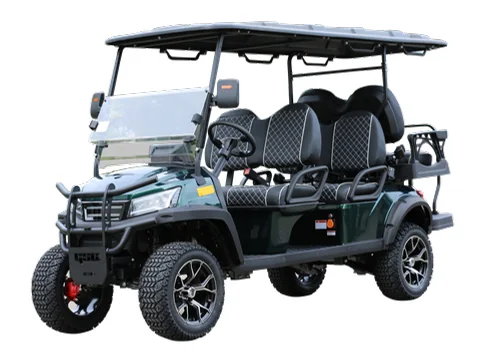

Specifications: lifted 4-seat and 6-seat carts
From the current model sheet for the lithium version. Ask for the 2-seat and lead-acid specifications with your quote.
| Specification | 4-seat (2+2), lifted | 6-seat (4+2), lifted |
|---|---|---|
| Size and performance | ||
| Overall size (L × W × H) | 3005 × 1350 × 2080 mm | 3780 × 1350 × 2080 mm |
| Net weight | ≤ 575 kg | ≤ 750 kg |
| Passengers | 4 | 6 |
| Wheelbase | 1670 mm | 2485 mm |
| Track, front / rear | 965 / 968 mm | |
| Ground clearance | 170 mm | |
| Turning radius | 3.0 m | |
| Climbing ability | 25% | |
| Range | 50–70 miles on a flat road | |
| Braking distance | Under 3.5 m | |
| Power system | ||
| Motor | 48V AC motor, 5 kW | |
| Electrical system | 48V | |
| Battery | 51.2V 150Ah lithium | |
| Charger | 48V / 25A | |
| Charging time | Under 8 hours (from 80% discharge) | |
| Controller | 48V, 350A | |
| DC-DC converter | 48V to 12V, 300W | |
| Chassis | ||
| Front suspension | MacPherson independent suspension with coil springs and hydraulic shock absorbers | |
| Rear suspension | Integral rear axle (16:1 ratio), coil springs, hydraulic shock absorbers and a rear stabilizer bar | |
| Brakes | Four-wheel hydraulic brakes: front disc, rear drum; pedal parking brake | |
| Steering | Rack and pinion, with automatic clearance compensation | |
| Frame | Q235 high-strength steel, welded; e-coated and anti-rust sprayed | |
| Features | ||

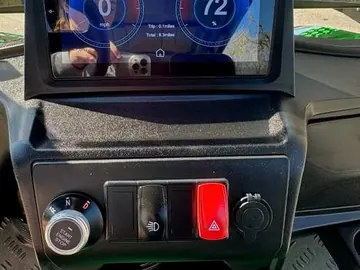

| Display | 10-inch IP66 waterproof multimedia LCD with vehicle status | |
| Front | Q235 steel brush guard and front basket | |
| Seats | PU leather | |
| Wheels and tires | 14-inch aluminum alloy wheels with 14-inch off-road tires | |
| Windshield | Folding acrylic windshield | |
Range depends on load, terrain and driving style. Specifications can change with the model year; your PI lists the exact build.

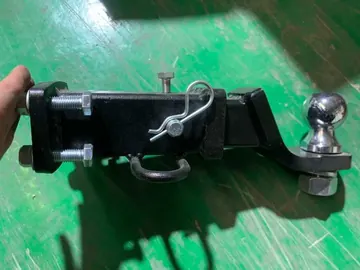

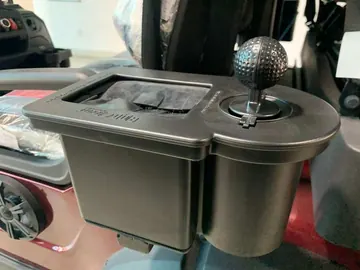

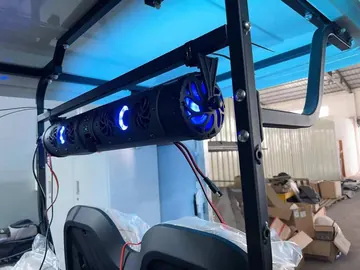

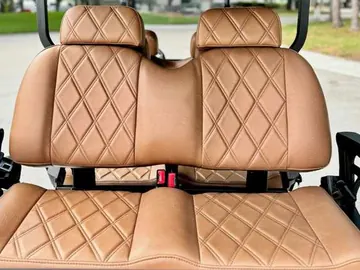

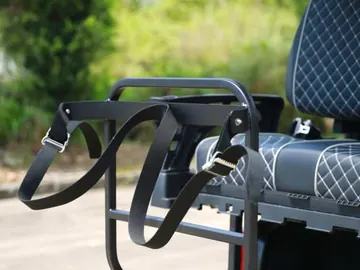

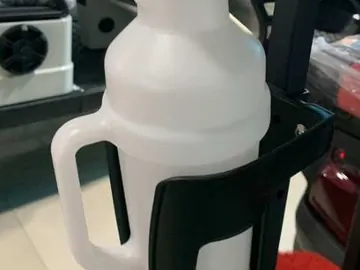

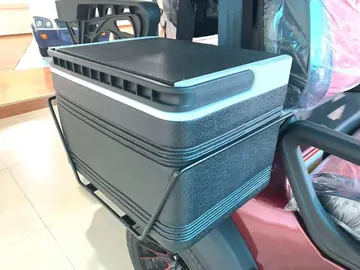

Options and upgrades
Options are priced per cart on your quote.
Your brand on every cart
Put your logo in up to 10 places at no extra cost, then choose the body color and rim style for each cart in your order.
Logo positions
- Front cover
- Side body
- Seat backs
- Front brush guard
- Steering wheel
- LCD display
- Wheel rim caps
- Battery
- Cart key
- User manual
9 body colors
- Champagne GoldMetallic
- BlackPantone 6C
- Life GreenPantone 7489C
- Metallic SilverMetallic
- CrimsonPantone 7623 XGC
- Sakura PinkPantone 189C
- Haze BluePantone 7458C
- WhitePantone Cool Gray 1C
- RedPantone 199C
Colors on screen are close to the paint samples, not exact. Ask for a color sample if a shade matters.

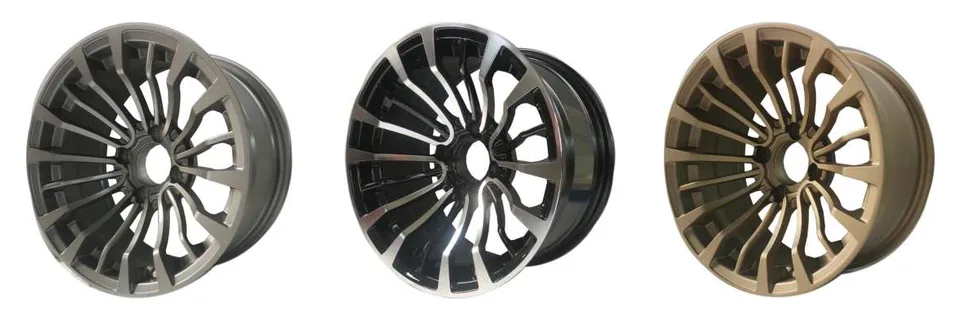

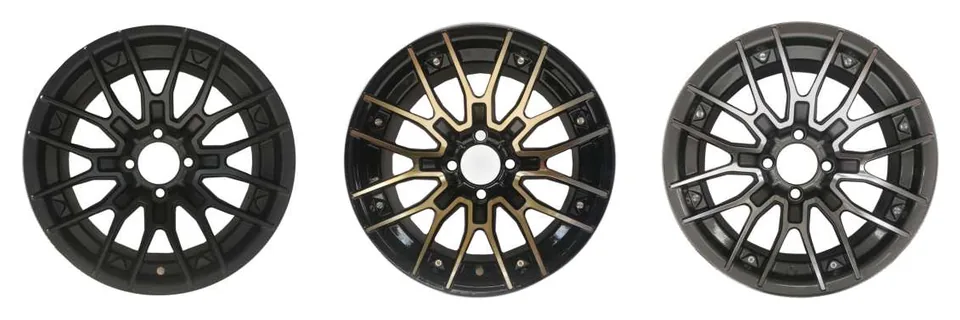

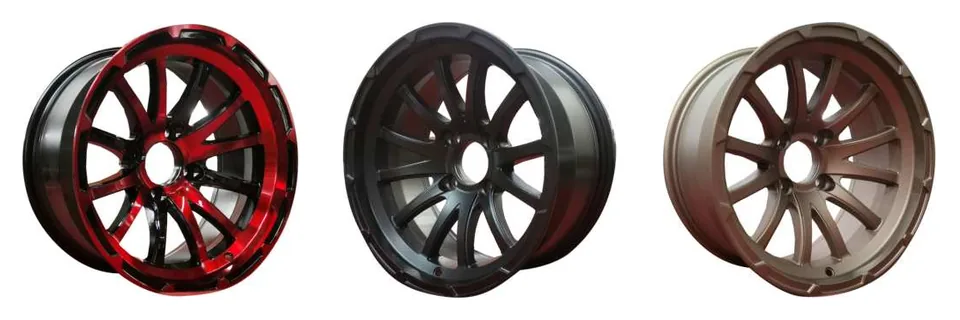

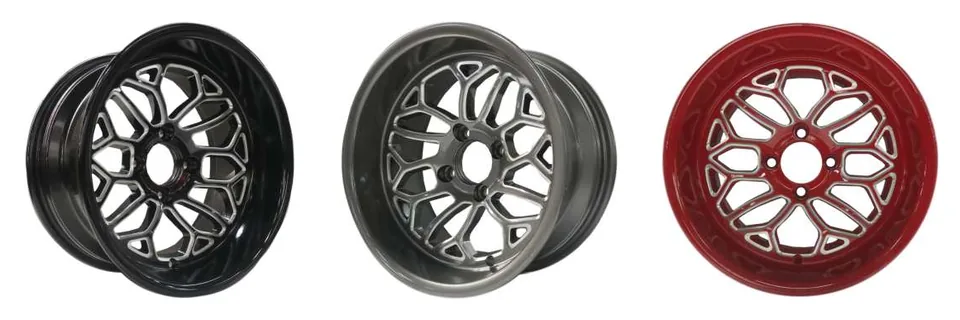

Wheel rims: 4 styles in 12 finishes
Assembly support
Every CKD and SKD order comes with what your team needs to assemble the carts. We can also help you set up the assembly line.
Included with every order
- Assembly manual and assembly video
- User manual and illustrated parts catalog
- Packages labeled by category, with part names and quantities
Handcart assembly line
No extra cost
We provide 3–5 handcarts for a three-station line: suspension and brakes, electrical parts, and body parts.
Professional 15 m assembly line
Paid option
A 15-meter line with an overhead gantry, air lines, LED lighting, fans and power sockets, for higher volumes. Quoted separately.
First SKD order of 25–30 carts? We send an electrical technician and a mechanical technician to train your team and help assemble the first carts.
How a CKD or SKD order works
- Tell us what you needCKD or SKD, seat configurations, battery, body colors, rims, options, quantity and destination port.
- Quote and PIWe reply within 1–2 working days. Payment by T/T, with terms on the PI.
- Production and photosLead time is 25–30 days. Before the container ships, we send you photos of your order.
- Shipping and assemblyOne 40ft HQ container per order. Assemble with the manual and video — with our technicians on a first SKD order.
CKD and SKD questions
What is the difference between CKD and SKD?
CKD (completely knocked down) carts arrive as a bare welded frame plus every system packed separately. SKD (semi-knocked down) carts arrive with the suspension, brakes and some main electrical parts already fitted to the chassis, so there are fewer assembly steps.
What is the minimum order?
One 40ft HQ container per order. (Spare parts have no MOQ.)
How many carts fit in a 40ft HQ container?
CKD: about 28 four-seat or 20 six-seat carts. SKD: about 24 four-seat or 18 six-seat carts.
Which batteries can I choose?
Lead-acid or lithium. The lifted models come with a 51.2V 150Ah lithium battery, with a 72V 105Ah lithium upgrade. For lithium batteries we provide the battery MSDS, the UN38.3 test report and the sea-freight transport certification.
What is the lead time?
25–30 days.
What warranty do the carts have?
The carts have a 1-year warranty.
Can the carts carry our brand?
Yes. Your logo can go in up to 10 places at no extra cost — including the front cover, side body, seat backs, steering wheel, LCD display, rim caps, key and user manual. Choose from 9 body colors and 4 rim styles in 12 finishes.
How do we assemble the carts?
Every order comes with an assembly manual, an assembly video, a user manual and an illustrated parts catalog. We provide 3–5 handcarts for a three-station assembly line at no extra cost, or a professional 15 m line as a paid option. On a first SKD order of 25–30 carts, we send an electrical technician and a mechanical technician to train your team.
Can you supply spare parts for the carts?
Yes. Add the parts you need to the same enquiry, using the illustrated parts catalog for part names.
Plan a CKD or SKD order
Tell us your kit, seats and destination port
Or email sales@topgolfcartparts.com. We reply with a quote within 1–2 working days.
What to include
- CKD or SKD
- Seat configurations and quantities
- Battery: lead-acid or lithium
- Body colors, rim style and options
- Destination port
Running other carts too? Add their spare parts to the same enquiry.
